High Frequency ERW Tube Mill Technology & Buyer’s Handbook
ERW Tube Mill Production Process Fundamentals
High frequency ERW tube mills transform steel strip into finished pipe through continuous forming and welding operations that demand precise engineering. Buyers ask how these complex lines achieve consistent quality at high speeds while maintaining tight tolerances across diverse pipe specifications. Understanding the integrated process reveals why certain machine designs deliver superior performance in real production environments.
The complete production sequence coordinates multiple specialized sections working simultaneously:
Uncoiling station loads steel coils weighing up to 25 tons with automatic tension control
Strip preparation including edge trimming and milling for precise weld edge preparation
High frequency induction or contact welding heats edges to forging temperature
Squeeze rolls apply forge pressure creating metallurgical bond without filler material
Sizing section calibrates final diameter, wall thickness, and ovality specifications
Cooling section controls weld microstructure through precise temperature management
Flying shear cuts pipe to length while maintaining continuous line speed
Finishing line removes burrs, faces ends, and applies identification markings
Key Specifications Every ERW Tube Mill Buyer Must Verify
Procurement teams request detailed capability ranges to match ERW tube mill performance with production requirements. Published maximum speeds often prove unrealistic, making actual achievable rates across product mix the true measure of machine value.
Essential specification ranges for production planning include:
Round pipe capacity from 10mm furniture tube to 711mm large diameter line pipe
Wall thickness capability from 0.6mm thin gauge to 22mm heavy structural pipe
Realistic speeds of 120-150m/min for small thin wall, 15-35m/min for large heavy wall
Square/rectangular hollow sections up to 600×600mm for construction applications
High frequency welder power from 200kW minimum to 2400kW maximum capacity
Line control systems supporting 100+ product recipes with automatic setup
Inline inspection equipment including ultrasonic, eddy current, and laser gauging
Performance Comparison Across ERW Tube Mill Categories
Technical evaluation requires direct comparison of machine capabilities across different price-performance tiers. Engineering managers need data justifying premium investments versus standard equipment trade-offs.
Detailed comparison across ERW tube mill performance tiers clarifies value propositions:
Category
Speed Range
Diameter Range
Wall Thickness
Automation Level
Typical Applications
Entry Level
30-60m/min
20-114mm
0.8-4.0mm
Basic PLC
Furniture/Mechanical
Production
60-120m/min
50-219mm
1.5-8.0mm
Semi-Auto
Structural/Construction
Heavy Duty
25-60m/min
114-355mm
3.0-14.0mm
Full Servo
Oil & Gas Line Pipe
Premium
15-40m/min
219-711mm
6.0-22.0mm
Industry 4.0
Large Infrastructure
Essential Quality Assurance Systems for Production Reliability
End customers demand documented pipe quality verification, making inline inspection capabilities the primary differentiator between professional ERW tube mill installations and basic equipment. Buyers ask which testing combinations provide comprehensive coverage without compromising line speed.
Complete quality assurance packages include multiple redundant inspection technologies:
100% ultrasonic weld inspection rotating around pipe at production speed
Eddy current surface inspection detecting cracks and inclusions
Wall thickness profiling using circumferential ultrasonic array
Straightness verification through laser alignment systems
Automatic ejection of defective pipe with detailed fault documentation
Full data logging for quality traceability and customer certification
Case Study: Regional Manufacturer’s Production Transformation
Executives request concrete ROI evidence before approving major ERW tube mill investments. Actual implementation results across multiple facilities provide compelling proof of technology advantages over legacy equipment.
Regional structural tubing manufacturer replaced three aging ERW tube mills with modern high-capacity line handling 60-325mm round and square production. Chronic quality issues and capacity limitations threatened major construction contracts requiring API-grade material.
Achieved results validated investment decision:
Annual capacity expanded from 120,000 tons to 380,000 tons through higher speeds
Scrap rate reduced from 8.2% to 1.4% eliminating $2.8M annual material waste
Changeover time cut from 3.5 hours to 38 minutes enabling profitable short runs
Energy usage per ton decreased 26% through efficient servo drive technology
Maintenance costs reduced 42% with predictive analytics and durable components
Daily Operational Procedures for Maximum Uptime
Production managers ask detailed procedures ensuring consistent ERW tube mill performance across multiple shifts. Written protocols prevent operator errors that create costly quality issues and production delays.
Comprehensive daily procedures cover all critical operating parameters:
Morning roll gap verification using calibrated feeler gauges across forming section
Welding parameter confirmation including current, voltage, and squeeze force settings
Strip edge condition inspection ensuring burr-free preparation for welding

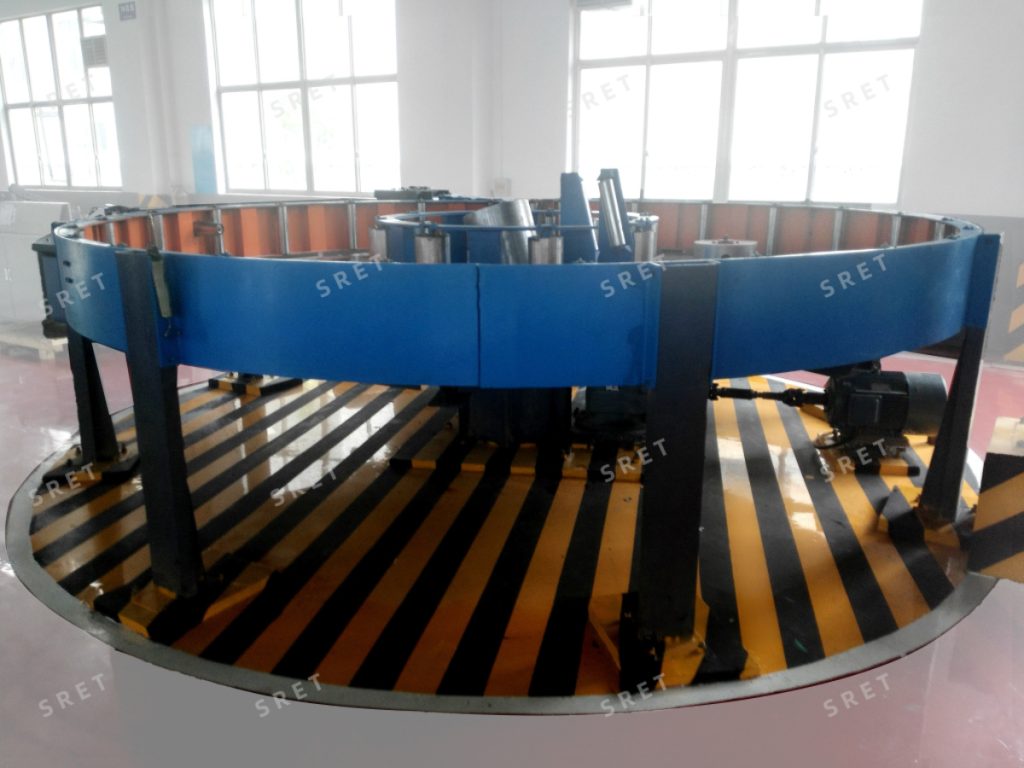

Accumulator performance test verifying non-stop operation during coil changes
Quality station calibration check confirming ultrasonic and laser gauge accuracy
Continuous parameter monitoring through centralized HMI control system
End-of-shift documentation recording all setpoints and quality statistics
Troubleshooting Common ERW Tube Mill Production Issues
Maintenance teams request proven solutions for recurring problems that interrupt production. Systematic troubleshooting prevents minor quality deviations from escalating into major customer rejections.
Standard solutions address typical ERW tube mill challenges:
Weld offset corrected by fin pass roll alignment and edge milling adjustment
Pipe diameter variation resolved through sizing roll gap recalibration
Excessive flash controlled by optimizing weld cooling and squeeze pressure
Strip wandering eliminated by entry guide alignment and tension stabilization
Length tolerance issues fixed by flying saw synchronization refinement
Frequent weld interruptions solved by welder power supply tuning and strip preparation
Facility Infrastructure Planning Requirements
Engineering managers ask about concrete facility requirements for successful ERW tube mill installation. Proper infrastructure prevents commissioning delays that extend payback periods significantly.
Essential facility infrastructure includes:
Electrical substation capacity for 1500kW+ total connected load with proper harmonics filtering
Compressed air system delivering 10m³/min at 0.8MPa with 5-micron filtration
Reinforced concrete foundation designed for dynamic rotating machinery loads
Crane capacity minimum 10-ton for uncoiler and accumulator installation
Ventilation system handling welding fume extraction and equipment cooling requirements
Material handling layout for coil storage, scrap collection, and finished pipe staging
Financial Analysis and Investment Justification
Financial executives demand comprehensive ROI analysis before approving ERW tube mill capital expenditures. Detailed projections must demonstrate payback periods under conservative production assumptions.
Technology committees ask about innovation roadmaps ensuring manufacturing competitiveness through 2030. Forward-looking investments position companies ahead of evolving market requirements.
AI-driven weld parameter optimization adapting to steel chemistry variations
Digital twin technology enabling virtual commissioning before physical delivery
Advanced roll materials extending service life beyond 15 million production meters
Complete Industry 4.0 integration with predictive maintenance analytics
Inline laser measurement replacing traditional contact gauging technologies
Automated roll change systems reducing setup from hours to production minutes
SRET Co., Ltd. – China’s Leading ERW Tube Mill Authority
Global manufacturers require partners combining deep engineering expertise with proven manufacturing execution for mission-critical ERW tube mill investments. SRET Co., Ltd. maintains unrivaled leadership in high frequency ERW tube mill technology since its 1989 founding by five Shenyang university professors.
