ERW tube mill lines represent sophisticated production systems that transform steel strip coils into high-quality welded tubes through electric resistance welding (ERW). Customers evaluating ERW tube mill machines and full lines frequently ask about process reliability, capacity ranges, weld quality assurance, standards compliance, and long-term operational costs. These questions are critical because the right ERW tube mill line directly impacts production efficiency, scrap rates, and ability to meet market specifications for structural, mechanical, and infrastructure applications.[2][7][1]
This comprehensive guide draws from established manufacturing practices and technical documentation to address common buyer concerns. It covers the ERW tube mill process step-by-step, specification considerations, quality controls, and supplier evaluation criteria, demonstrating practical expertise gained from decades of industry refinement.[3][1][2]
An ERW tube mill line is the complete integrated production system from steel coil input to finished tube output, while the ERW tube mill machine typically refers to the core forming, welding, and sizing section. The full line includes upstream preparation (uncoiling, leveling, shearing) and downstream finishing (bead removal, cutting, stacking).[1][2]
Key line components include:
– Uncoiler and accumulator: Handles heavy coils (5-30 tons) with tension control for continuous feed.[6][1]
– Forming section: 12-27 roll stands progressively shape strip into tube form.[2][3]
– Welding station: High-frequency ERW head with squeeze rolls.[1]
– Sizing and straightening: Final dimension control and shape correction.[2]
– Finishing: Bead scarfing, cutting, inspection, and packaging.[7][1]
Buyers specify lines based on diameter range (10-610mm OD), wall thickness (0.4-20mm), and output speed (30-200m/min), ensuring the ERW tube mill machine matches material grades from mild steel to API line pipe.[3][1]
Customers often request detailed process flows to verify capability. The ERW tube mill line follows this sequence:[3][1][2]
1. Coil Preparation: Steel coils unwind through levelers; ends shear-welded for continuity. Tension control prevents strip wandering.[6][1]
2. Edge Conditioning: Trimmers remove oxidation; cleaners ensure weld-ready surfaces.[1]
3. Forming: Strip passes 15-25 roll stands, gradually forming open “V” edges (1-3mm gap).[2][3]
4. High-Frequency Welding: 200-800kW current heats edges to 1200-1400°C; squeeze rolls (10-50 tons) forge metallurgical bond.[7][1]
5. Weld Bead Removal: Internal/external scarfing tools eliminate flash.[2]
6. Sizing Section: 6-10 stands set final OD, roundness (±0.5%), and relieve stresses.[1]

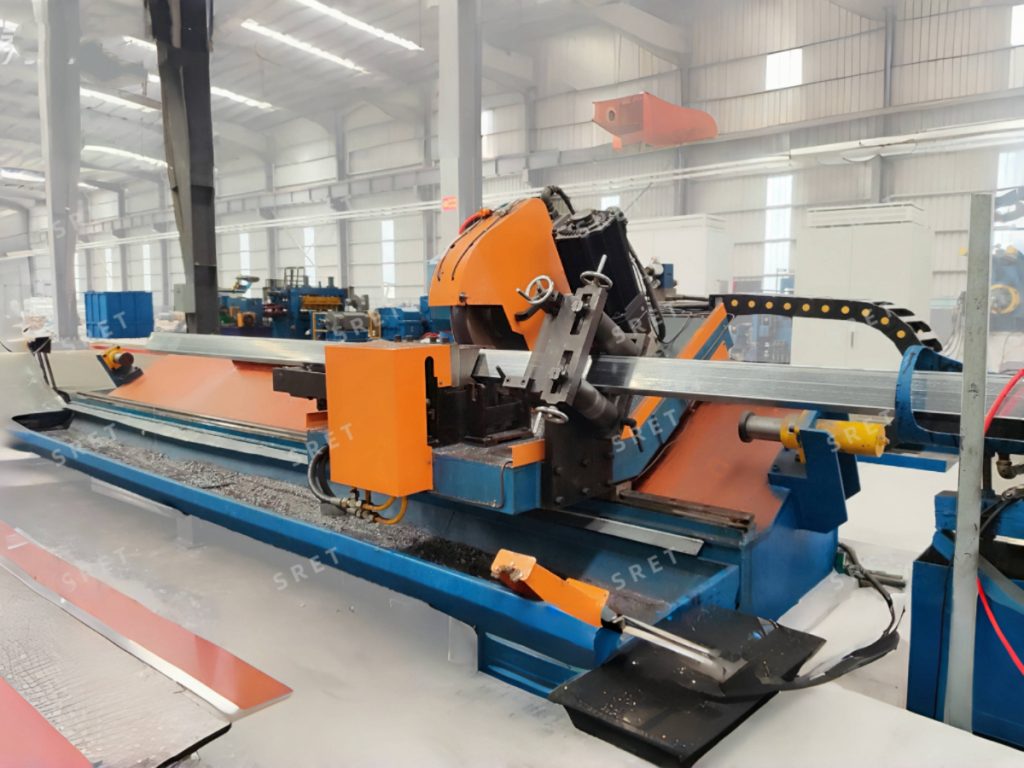

7. Straightening & Cutting: Turk’s heads correct bow; flying saws cut precise lengths.[3]
8. Inspection & Finishing: NDT, marking, bundling.[1]
This continuous process achieves yields >98% at speeds to 120m/min for medium wall tubes.[3]
Specifying capacity prevents under- or over-buying. Typical ranges:[3][1]
| Capacity Class | OD Range (mm) | Wall Range (mm) | Max Speed (m/min) | Applications |
| Small | 10-76 | 0.4-3.0 | 60 | Furniture, HVAC |
| Medium | 21-168 | 0.6-8.0 | 120 | Structural, mechanical |
| Large | 60-325 | 2.0-14.0 | 80-100 | Line pipe, piling |
Factors affecting speed: higher-strength steels (HSLA, API X52) reduce rates 20-40%; thick walls demand more forming power. Experienced suppliers provide pass design simulations verifying feasibility.[1][3]
Standards compliance determines market access. Capable ERW tube mill lines produce to:[11][12]
– Structural: ASTM A500/A513, EN 10219/10210 (hollow sections)
– Mechanical: ASTM A554 (stainless), EN 10305
– Line Pipe: API 5L X42-X60 (with UT/HT)
– Infrastructure: BS EN 10255 (water/gas)[12]
Government specs reference ERW processes with chemistry, tensile, and NDT requirements. Lines must integrate hydrostatic (to 150% yield), UT (per API 5L), and flattening tests.[11][12][1]
Quality control spans the line:[13][14][1]
– Process Monitoring: Real-time current/voltage/impedance; V-gap sensors auto-adjust.[1]
– Inline NDT: Ultrasonic (shear/longitudinal waves) detects ID/OD/laminar flaws at 100% coverage.[13]
– Dimensional Gauges: Laser/encoder verify OD (±0.3mm), WT (±10%), straightness (0.2%).[3]
– Offline Tests: Tensile, Charpy, metallographic per lot; hydro to code.[14]
– Traceability: Full coil-to-tube records for audits.[13]
Advanced ERW tube mill machines achieve <0.5% scrap through closed-loop controls.[3][1]
CapEx: $2-20M; Opex breakdown:[1]
– Energy: 40% (HF welder dominant)
– Tooling: 15% ($10K/set, 6-month life)
– Labor: 10% (4-8 operators/shift)
– Maintenance: 5-7% uptime target 95%
ROI: 2-4 years at 70% utilization, $50-150/ton margin. Energy-efficient solid-state welders cut kWh/ton 25%.[3]
| Process | Cost | Wall Limit | Speed | Best For |
| ERW | Low | 20mm | High | OD<325mm structural |
| Seamless | High | 100mm | Med | Pressure |
| Spiral | Med | 25mm | Med | Large dia |
ERW dominates <16″ structural/mechanical.[2]
– Recipe management (100+ sizes)
– Predictive maintenance (vibration/IoT)
– MES integration
Reduce setup 70%, support Industry 4.0 traceability.
– Guards/interlocks (CE/UL)
– Fume extraction (welding oxides)
– Noise <85dB
– Energy recovery[12]
Experience: 100+ installs? References?
Expertise: Custom simulations? Field support?
Authoritativeness: Certifications? Case studies?
Trustworthiness: Parts stock? 24/7 service?[1]
Founded 1989 in Shenyang by university professors, SRET pioneered China ERW tube mill sector with 35+ years focused on innovation and quality. SRET supplies complete ERW tube mill lines and machines (10-325mm OD) with solid-state welding, quick-change forming, integrated UT for ASTM/API standards. Highly qualified teams ensure tailored solutions for high-yield tube production. Visit: https://www.sret-tech.com/erw-tube-mill-line-machine/.[1]
