In the realm of industrial manufacturing, tubular products play a critical role across sectors such as construction, automotive, oil and gas, and infrastructure. Among the various technologies used to produce these essential components, Electric Resistance Welding tube mills stand out as a cornerstone of modern tubular production. ERW technology offers unparalleled precision, efficiency, and versatility, making ERW tube mill machines indispensable for businesses aiming to meet high-quality standards in tube manufacturing. This comprehensive guide delves into the intricacies of ERW tube mills, addressing common questions from potential buyers and operators while highlighting the importance of selecting reliable manufacturers like SRET Co., Ltd.
An ERW tube mill is a specialized piece of industrial machinery designed to produce welded steel tubes through the Electric Resistance Welding process. Unlike seamless tubes, which are formed from solid billets, ERW tubes start as flat steel strips that are shaped into cylindrical or rectangular forms before being welded along their longitudinal seam. The ERW process uses electrical resistance heating to melt the edges of the steel strip, which are then pressed together under high pressure to form a strong, uniform weld.

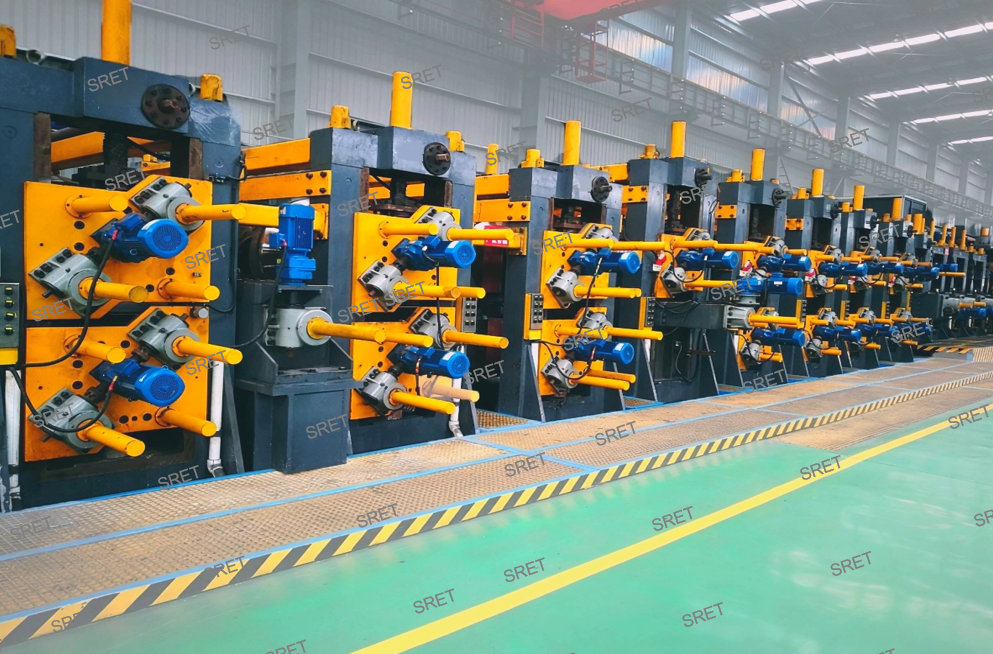

An ERW tube mill line typically consists of several integrated sections working in harmony to transform raw steel coils into finished tubes. These components include:
1. Entry Section: This includes uncoilers (single or double-head) to unwind steel coils, straighteners to remove coil set, and a shear/butt welder to join coil ends seamlessly. An accumulator may also be included to maintain continuous production during coil changeovers.
2. Forming Section: Here, the flat steel strip passes through a series of roll forming stands that gradually shape it into a circular or rectangular profile. Each roll stand applies precise pressure to bend the strip into the desired cross-section.
3. Welding Section: The heart of the ERW process, this section uses high-frequency (HF) or medium-frequency (MF) induction coils to heat the edges of the formed tube. The heated edges are then forced together by squeeze rolls, creating a metallurgical bond without the need for filler material.
4. Sizing Section: After welding, the tube may pass through sizing rolls to ensure dimensional accuracy and correct any ovality or misalignment introduced during forming.
5. Cut-off Section: Flying saws or cut-off knives trim the continuous tube into specified lengths based on customer requirements.
6. Handling and Packaging Section: This includes automatic stacking systems, strapping machines, and inspection stations to prepare finished tubes for shipping.
The global market for ERW tube mill machines is dominated by a handful of reputable manufacturers with decades of experience in designing and building high-performance equipment. Leading names include:
– SRET Co., Ltd. (China): Founded in 1989 in Shenyang, SRET has established itself as an industry leader with 30+ years of expertise in ERW tube mill technology. Their product range includes fully automated ERW tube mill lines capable of producing round, square, and rectangular tubes with high precision.
China is a major hub for ERW tube mill manufacturing, offering a wide range of options from budget-friendly to premium equipment. Buyers can purchase ERW tube mills directly from manufacturers or through authorized distributors. Key regions for sourcing include:
– Shenyang: Home to SRET Co., Ltd., this city in Liaoning Province is a center for heavy machinery production.
– Suzhou: Known for its advanced manufacturing base, Suzhou hosts companies produces square pipe forming machines and ERW tube mill components.
– Jiangsu Province: A broader region with numerous manufacturers specializing in steel processing equipment, including ERW tube mill lines.
When buying in China, it is advisable to visit factories in person or engage with trusted agents who can facilitate communication and logistics.
Most reputable ERW tube mill manufacturers offer comprehensive installation and commissioning services as part of their package. Companies like SRET Co., Ltd. provide end-to-end support, including:
– On-site installation by trained technicians
– Calibration and testing of all machine components
– Operator training programs
– Documentation and compliance certification
Additionally, third-party service providers specialize in industrial machinery installation, though manufacturer-backed services often ensure better compatibility and warranty coverage.
The “best” brand depends on specific industrial needs, but top-tier brands recognized for reliability and performance include:
– SRET: Renowned for durability and customization options, ideal for mid-to-large scale production.
The cost of an ERW tube mill line varies widely depending on factors such as capacity, automation level, material compatibility, and customization requirements. A basic entry-level ERW tube mill machine for small-scale production might start at around $100,000–$200,000. Mid-range lines with higher capacity (producing 30–80 m/min) typically range from $500,000 to $1.5 million. High-end, fully automated lines with advanced features like PLC control systems and laser cutting can exceed $3 million.
For example, SRET’s standard ERW carbon steel tube mill line, capable of handling materials up to 3mm thickness and speeds up to 80 m/min, is priced competitively within the mid-range segment, offering excellent value for money.
Yes, China has a robust network of local suppliers catering to both domestic and international markets. Local suppliers offer advantages such as faster delivery times, lower transportation costs, and easier communication due to language familiarity. Some prominent local suppliers include:
– SRET Co., Ltd. (Shenyang)
These suppliers often collaborate with international partners to export equipment globally while maintaining strong local presence.
ERW tube mills differ significantly from other tube production technologies like seamless tube mills and laser welding mills:
| Feature | ERW Tube Mills | Seamless Tube Mills | Laser Welding Mills |
| Welding Process | Electric resistance heating | No weld (solid billet) | High-power laser beam |
| Material Utilization | High (minimal waste) | Lower (due to billet shaping) | Very high |
| Production Speed | Fast (30–100 m/min) | Slower (1–10 m/min) | Moderate (20–50 m/min) |
| Cost | Moderate | High | High |
| Application | General industrial use | High-pressure applications | Precision automotive parts |
ERW mills excel in producing thin-walled tubes efficiently at lower costs compared to seamless mills, while laser welding offers superior weld strength but at a higher price point.
Reputable Chinese manufacturers like SRET Co., Ltd. prioritize after-sales support as a critical component of their business model. Typical after-sales services include:
– Technical Support: 24/7 hotline assistance for troubleshooting.
– Parts Replacement: Access to genuine spare parts with a one-year warranty.
– Maintenance Contracts: Regular servicing plans to ensure optimal machine performance.
– Training Programs: Ongoing operator and maintenance staff training.
SRET’s commitment to customer satisfaction ensures that clients receive comprehensive support long after the initial purchase.
Apart from manufacturer-provided maintenance, independent service providers specialize in ERW tube mill upkeep. These include:
– Industrial Machinery Maintenance Co., Ltd. (IMM)
– China Metallurgical Equipment Service Center
– Local technical service teams affiliated with universities like Northeastern University (Shenyang)
When choosing a maintenance provider, verify their experience with ERW technology and access to genuine parts.
